A sane starting point for writing tab_bar.py for Kitty

Writing a custom Kitty tab bar can be tedious, as you have to understand how the default tab_bar.py works, as well as the surrounding modules like boss.py and tabs.py.

I have been experimenting with Kitty as a potential replacement for Wezterm, and I wanted the following items in the tab bar:

  1. Tab index
  2. Current tab layout
  3. Current working directory
  4. Current process

I did not get too far with kitty.conf, as listing all those items in tab_title_template rendered each tab too long; I needed to use Python.

But even though this discussion page exists, I still found writing the draw_tab function from scratch a little overwhelming, especially because I wanted things like mouse clicking to work as well. After reading the discussion page and many dotfiles, I found a good starting point: modifying the draw_data and simply calling one of the built-in functions.

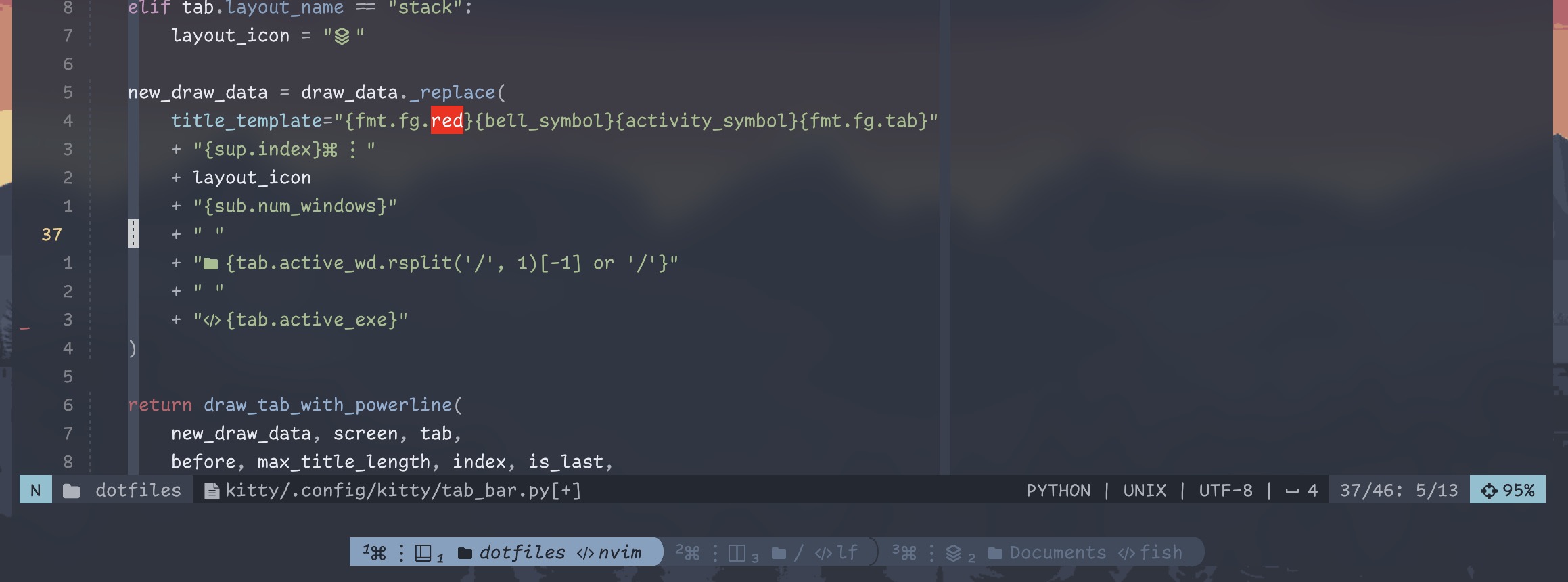

my-kitty-tab-bar

tab_bar.py

 1from kitty.fast_data_types import Screen
 2from kitty.tab_bar import (DrawData,
 3                           TabBarData,
 4                           ExtraData,
 5                           draw_tab_with_powerline,
 6                           )
 7
 8
 9def draw_tab(
10    draw_data: DrawData, screen: Screen, tab: TabBarData,
11    before: int, max_title_length: int, index: int, is_last: bool,
12    extra_data: ExtraData,
13) -> int:
14    """
15    Kitty's DrawData is defined here:
16    https://github.com/kovidgoyal/kitty/blob/master/kitty/tab_bar.py#L58
17
18    Strat is to edit title_template and active_title_template
19    and call the original draw_tab_with_* function.
20    """
21
22    layout_icon = "?"
23    if tab.layout_name == "tall":
24        layout_icon = " "
25    elif tab.layout_name == "vertical":
26        layout_icon = " "
27    elif tab.layout_name == "horizontal":
28        layout_icon = " "
29    elif tab.layout_name == "stack":
30        layout_icon = " "
31
32    new_draw_data = draw_data._replace(
33        title_template="{fmt.fg.red}{bell_symbol}{activity_symbol}{fmt.fg.tab}"
34        + "{sup.index}󰘳  "
35        + layout_icon
36        + "{sub.num_windows}"
37        + " "
38        + "󰉋 {tab.active_wd.rsplit('/', 1)[-1] or '/'}"
39        + " "
40        + " {tab.active_exe}"
41        + " {title}"
42
43        # active_title_template inherits title_template if nil
44    )
45
46    return draw_tab_with_powerline(
47        new_draw_data, screen, tab,
48        before, max_title_length, index, is_last,
49        extra_data)

kitty.conf:

# ...

tab_bar_style custom
# This is still used since i call `draw_tab_with_powerline` in tab_bar.py
tab_powerline_style round
tab_bar_align center
tab_bar_min_tabs 1
tab_title_max_length 0

# ...

A future optimization is to use tab.title instead of calling active_wd/active_exe, since apparently those calls are apparently expensive. I have been studying TabAccessor and the tab title functions to find a way to (a) check if the tab name has been manually changed (b) parse current executable and CWD from the title instead of system calls.

So… yeah, I guess you do have to learn how Kitty works.
